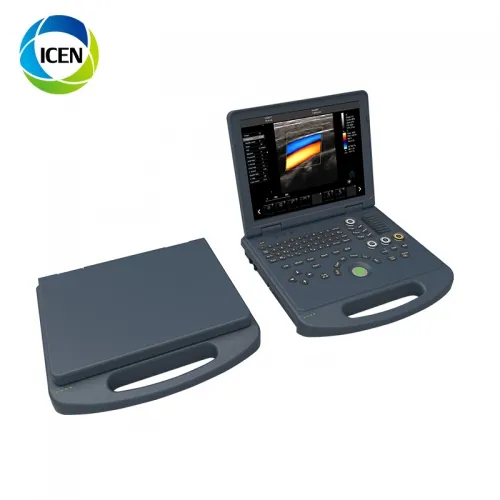

Product Description:
Windows 7 embedded operating platform, solid-state hard drive data storage,safe and reliable and boot quickly
Adopt the international standard lithium battery: 18650mAH
Backup time ≥ 3H. Battery capacity 173wh.
| Display |
15 inch LED medical display |
| Probe connector |
Single 1 |
| Operation interface |
English (more languages as option) |
| Display mode |
B,B+B,4B,B+M,M,C,PW,4D,B/C,B/C/PW,B/PW |
| Focus |
4 segments |
| Body mark |
≥57 |
| Image processing |
Up/Down, Left/Right, Angular variation, Reverse |
| Measurement |
Distance, circumference, area, volume, heart rate, diameter stenosis rate, area stenosis rate, angle, rhythm, speed. |
| Application |
Abdomen,cardiac,skeletal muscle, early obstetrics, middle and late obstetrics, pelvic (uterine attachment) , small parts, urology, peripheral blood vessels, GW&EDD, fetal weight. |
| Character display |
Date, time, name, sex, age, doctor, hospital, annotation (full screen character editing) |
| Cine loop |
≥ 1200 frames, continuous playback or view one by one. |
| Storage |
Probe parameter, cine loop, measuring result, report can be saved and transferred to external storage device |
| Gray scale |
256 levels |
| Puncture guide |
Available |
| Gravel positioning |
Available |
| Dynamic range |
0-270dB |
| TGC control |
8 segments |
| Pre-processing |
Variable aperture, dynamic apodization, dynamic digital filtering, multi-beam parallel processing technology, THI and so on. |
| Post-processing |
Dynamic range 0-270DB, black and white afterglow 0-7, smoothing 0-7, gray curve 1-16, frame correlation, SHI, sound power, wall filter, cumulative number, baseline adjustment, sampling frame adjustment , spectral sampling volume, spectral sampling volume angle, the PRF (pulse repetition frequency) and so on. |
| Blind zone |
≤4mm |
| Max display depth |
320mm |
| Geometric accuracy |
horizontal ≤ 5%, vertical ≤ 5% |
| Resolution |
lateral ≤ 2mm, axial ≤ 1mm |
| External interface |
HDMI, USB, DICOM 3.0 |
| Display magnification |
16 kinds |
| Frame rate |
5-1016fps |
| Scanning range |
5% - 100% |
| Gain adjustment |
Overall gain: 0 ~ 100%, PW gain: 0-15, CFM gain: 0-15 |
| Image optimization |
6 level adjustable |
| Smoothing |
8 level adjustable |
| Edge enhancement |
8 level adjustable |
| PRF |
16 level adjustable |
| Gray scale curve |
16 level adjustable |
| Acoustical power |
15 level adjustable |
| Weight |
NW: 6.3kg GW: 15kg |
| Packing size |
60*50*27cm |
Probe frequency range:
3.5MHZ convex probe: 2.0, 3.0, 3.5, 4.0, 5.5Mhz
6.5MHZ trans-vaginal Probe: 5.0, 6.0, 6.5, 7.5, 9.0Mhz
7.5MHZ High frequency Linear Probe: 6.0, 6.5, 7.5, 10.0, 12.0Mhz
6.5Mhz micro-convex probe(R11/R15/R20):5.5, 6, 6.5, 7.5, 9Mhz
Volume probe: 2.0, 3.0, 3.5, 4.0, 5.5Mhz
- How to buy your products ?Do you have distributor in our country?
You can buy the products from our company directly.Normally the procedure is:Sign the contact ,payment byT/T, contact the shipping company to delivery the goods to your country.
The free warranty is one year from the day of Commissioning qualified.
- Can we visit your country ?
Of course,we will prepare for everything in advance if it is necessary .Generally,it is require that customers must have build agency relationship or business relationship with our company.
- How long is the validity of quotation?
Generally,our price is valid within one month from the date of quotation .The price will be adjusted appropriately according to the price fluctuation of raw material and changes in market .
- Do you have the CE certificate ?
Yes, most of our products have the CE certificate.
