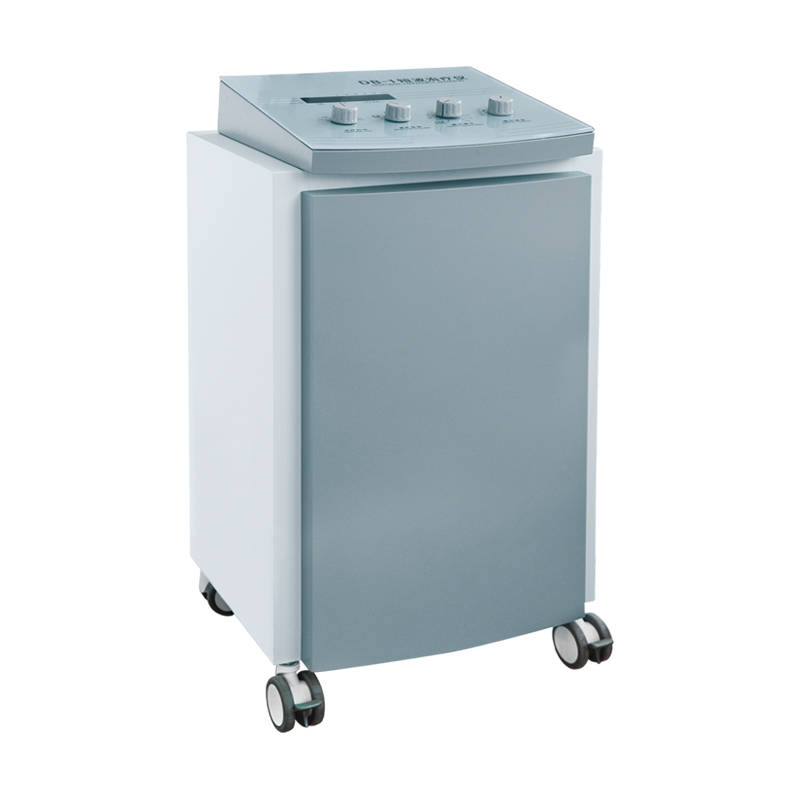

DB-1 Electro Therapy Machine Radial Shockwave Shortwave Therapy Device for Physiotherapy
DB-1
Key Performance Specifications:
1. Operating Frequency: 27.12 MHz; Tolerance: ±0.6%.
2. Pulse Modulation Frequency: 50 Hz (Sparse Wave) or 100 Hz (Dense Wave); Tolerance: ±20%.
3. Pulse Width: 1.5 ms; Tolerance: ±20%.
4. Rated Continuous Shortwave Output Power: 200 W; Tolerance: ±20%.
5. Rated Pulsed Shortwave Output Power: a) When the pulse modulation frequency is 50 Hz (Sparse Wave), the rated pulsed shortwave output power is 25 W; Tolerance: ±20%.
b) When the pulse modulation frequency is 100 Hz (Dense Wave), the rated pulsed shortwave output power is 50 W; Tolerance: ±20%.
6. Treatment Duration: Divided into five settings: 10 min, 15 min, 20 min, 25 min, and 30 min; Tolerance for each setting: ±1 min.
7. Power Supply: AC 220 V, 50 Hz. Input Power: 700 VA.
8. Duty Cycle: Continuous operating time of 4 hours.
9. Dimensions: 510 mm × 430 mm × 930 mm; Weight: 47 kg.

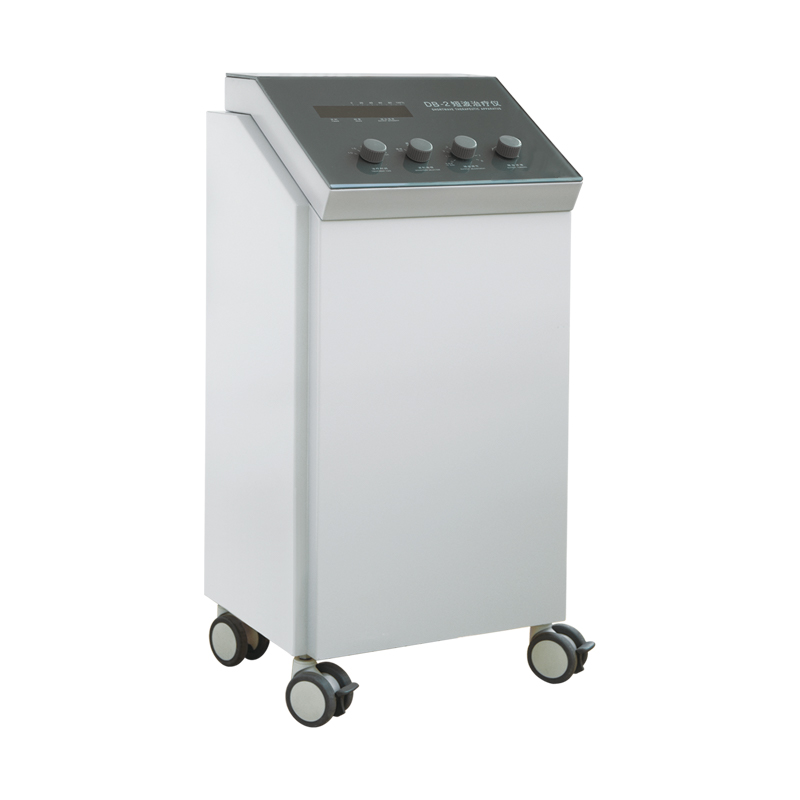

DB-2
This therapeutic device is suitable for the auxiliary treatment of the human body to alleviate pain, relieve spasms, and reduce inflammation. The unit features a floor-standing design for convenient mobility. It incorporates electronic treatment timing, audio-visual prompts, and a light-bar display for output intensity, ensuring clear and operation; it also includes a safety mechanism that automatically resets the output to zero prior to activation. Features: The output is adjustable across 8 levels; the amplitude variation during adjustment is minimal, facilitating treatment with varying dosages. The physiotherapeutic effect of pulsed shortwave therapy is characterized by a strong non-thermal effect—a capability not achievable with continuous-wave therapy—thereby allowing for increased dosages to treat deep-seated affected areas.
Key Performance Specifications:
1. Operating Frequency: 27.12 MHz; Tolerance: ±0.6%.
2. Pulse Modulation Frequency: 50 Hz (Sparse Wave) or 100 Hz (Dense Wave); Tolerance: ±20%.
3. Pulse Width: 2 ms; Tolerance: ±20%.
4. Rated Continuous Shortwave Output Power: 120 W; Tolerance: ±20%.
5. Rated Pulsed Shortwave Output Power: a) When the pulse modulation frequency is 50 Hz (Sparse Wave), the rated pulsed shortwave output power is 20 W; Tolerance: ±20%.
b) When the pulse modulation frequency is 100 Hz (Dense Wave), the rated pulsed shortwave output power is 40 W; Tolerance: ±20%.
6. Treatment Duration: Divided into five settings: 10 min, 15 min, 20 min, 25 min, and 30 min; Tolerance for each setting: ±1 min.
7. Power Supply: AC 220 V, 50 Hz; Input Power: 450 VA.
8. Duty Cycle: Continuous operation time of 4 hours.
9. Dimensions: 430 mm × 360 mm × 890 mm; Weight: 37 kg.

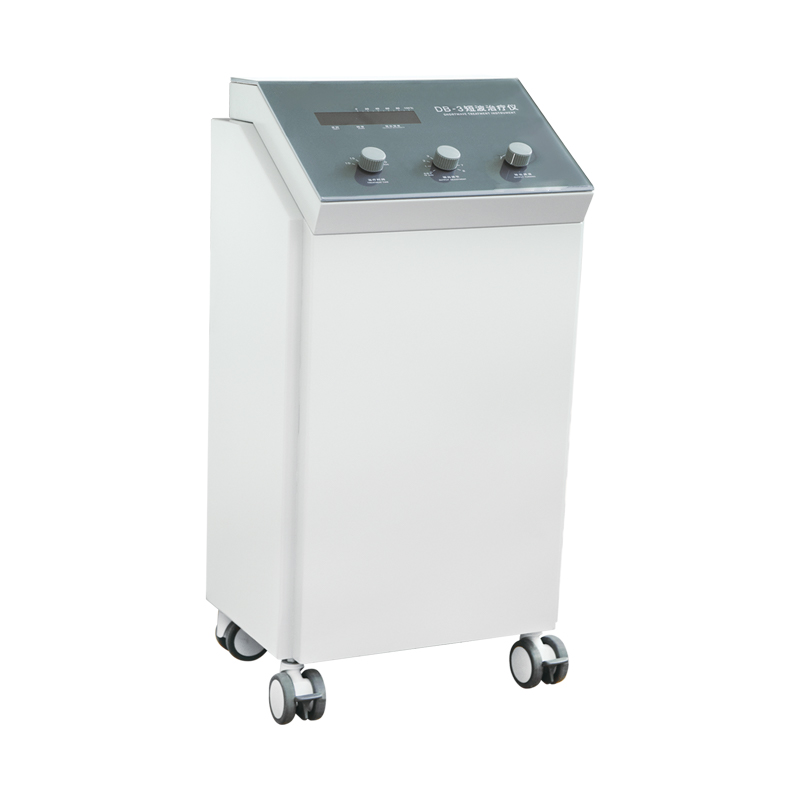

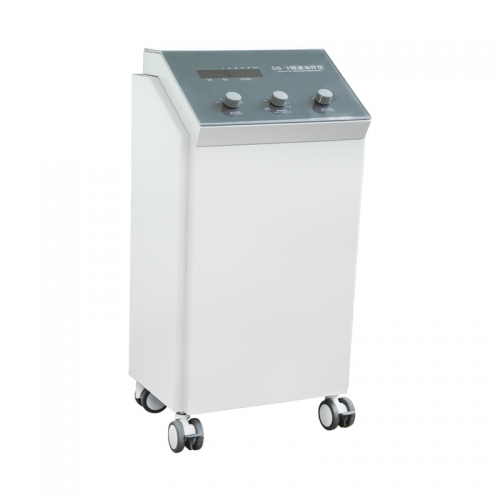

DB-3
This therapeutic device is suitable for the auxiliary treatment of the human body to provide pain relief, spasmolysis, and anti-inflammatory effects. The unit features a floor-standing design for convenient mobility. It incorporates electronic treatment timing, audio-visual prompts, and a bar-graph display for output intensity, ensuring clear and operation; it also includes a safety mechanism that automatically resets the output to zero upon startup. Key Features: The output intensity is adjustable across 8 levels; the amplitude variation during adjustment is minimal, facilitating therapeutic applications requiring varying dosages.
Main Performance Specifications:
1. Operating Frequency: 27.12 MHz; Tolerance: ±0.6%.
2. Rated Continuous Shortwave Output Power: 120 W; Tolerance: ±20%.
3. Treatment Duration: Selectable in five increments: 10 min, 15 min, 20 min, 25 min, and 30 min; Tolerance for each setting: ±1 min.
4. Power Supply: AC 220 V, 50 Hz; Input Power: 450 VA.
5. Duty Cycle: Continuous operation duration of 4 hours.
6. Dimensions: 430 mm × 360 mm × 890 mm; Weight: 37 kg.

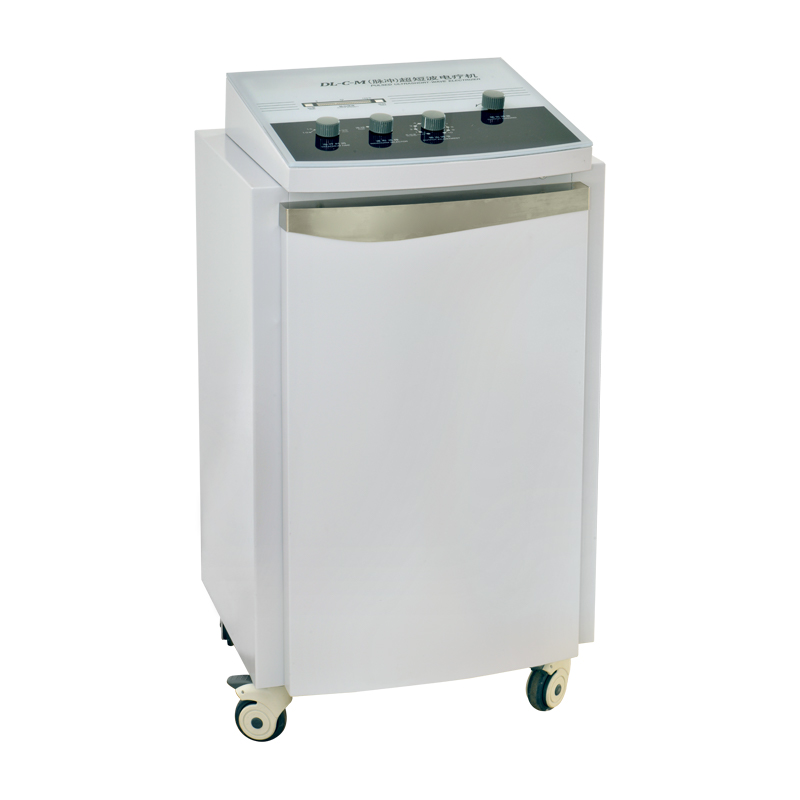

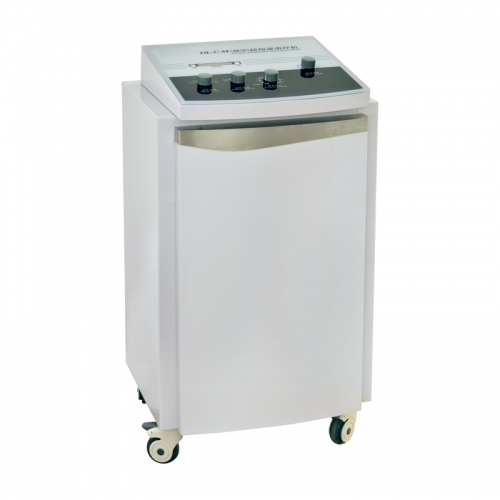

DL-C-M
This electrotherapy unit is designed for the auxiliary treatment of the human body to alleviate pain, relieve spasms, and reduce inflammation. The unit features a floor-standing design for easy mobility. It incorporates electronic timing for treatment duration, audio-visual prompts, and a light-bar display for output intensity, ensuring clear and operation; it also includes a safety mechanism that automatically resets the output to zero upon startup. Key Features: The output intensity is adjustable across 10 levels, with minimal amplitude fluctuation during adjustment, facilitating precise treatment dosing tailored to individual needs. The pulsed ultra-shortwave therapy employed by this unit exerts potent non-thermal effects—a capability unattainable by continuous-wave devices—thereby allowing for increased treatment dosages to effectively target deep-seated affected areas.
Main Performance Specifications:
1. Output Power: 200W; Permissible Deviation: ±20%.
2. Operating Frequency: 27.12 MHz; Permissible Deviation: ±0.6%.
3. Treatment Duration: Selectable across 5 settings: 10, 15, 20, 25, and 30 minutes; Permissible Deviation: ±10%.
4. Pulse Modulation Frequency: Selectable between 2 settings: "Sparse" (70 Hz) and "Dense" (350 Hz); Permissible Deviation: ±15%.
5. Power Supply: ~220V, 50 Hz; Rated Input Power: 900 VA.
6. Duty Cycle: Continuous operation for 4 hours.
7. Operating Environment: Ambient Temperature: 5°C to 40°C; Relative Humidity: ≤80%.
8. Dimensions: 510 mm × 440 mm × 930 mm; Weight: 50 kg.

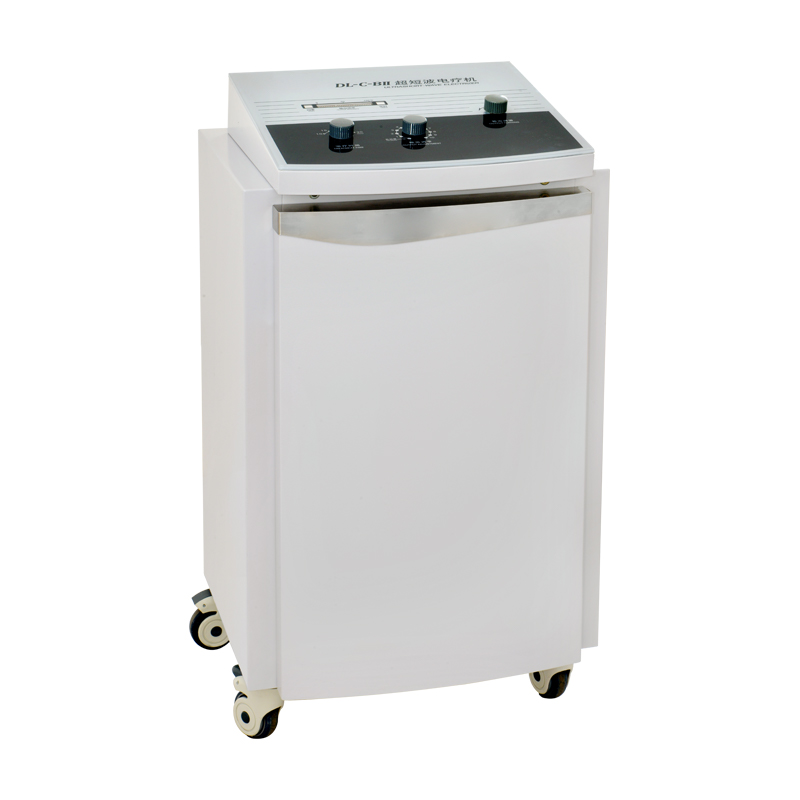

DL-C-BII
This electrotherapy device is designed for the auxiliary treatment of the human body, providing analgesic, antispasmodic, and anti-inflammatory effects. Featuring a floor-standing design for easy mobility, the unit incorporates electronic timers for treatment duration, audio-visual prompts, and a light-bar display for output intensity, ensuring clear andoperation. It also includes a safety mechanism that automatically resets the output to zero upon startup. Key Features: The output intensity is adjustable across 10 levels; during adjustment, the magnitude of output variation remains minimal, facilitating the precise delivery of various therapeutic dosages.
Main Performance Specifications:
1. Output Power: 200W (Permissible deviation: ±20%).
2. Operating Frequency: 27.12 MHz (Permissible deviation: ±0.6%).
3. Treatment Duration: Selectable across five settings: 10, 15, 20, 25, and 30 minutes (Permissible deviation: ±10%).
4. Power Supply: ~220V, 50Hz. Rated Input Power: 900VA.
5. Duty Cycle: Continuous operation for 4 hours.
6. Operating Environment: Ambient temperature: 5°C to 40°C; Relative humidity: ≤80%.
7. Dimensions: 510 mm × 440 mm × 930 mm. Weight: 50 kg.
